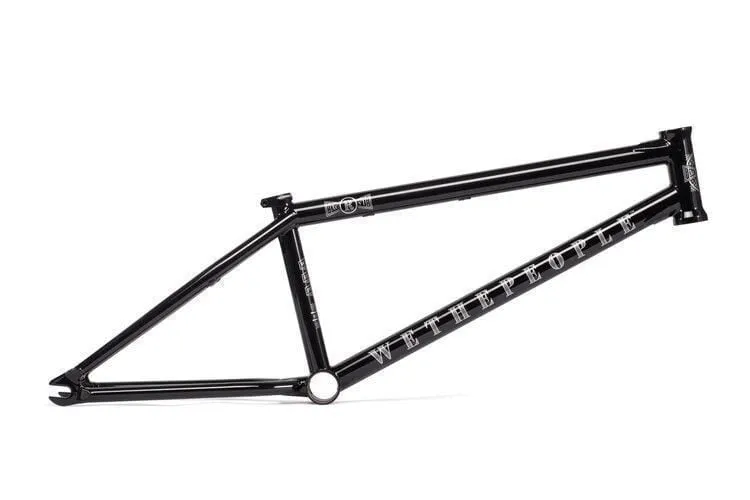

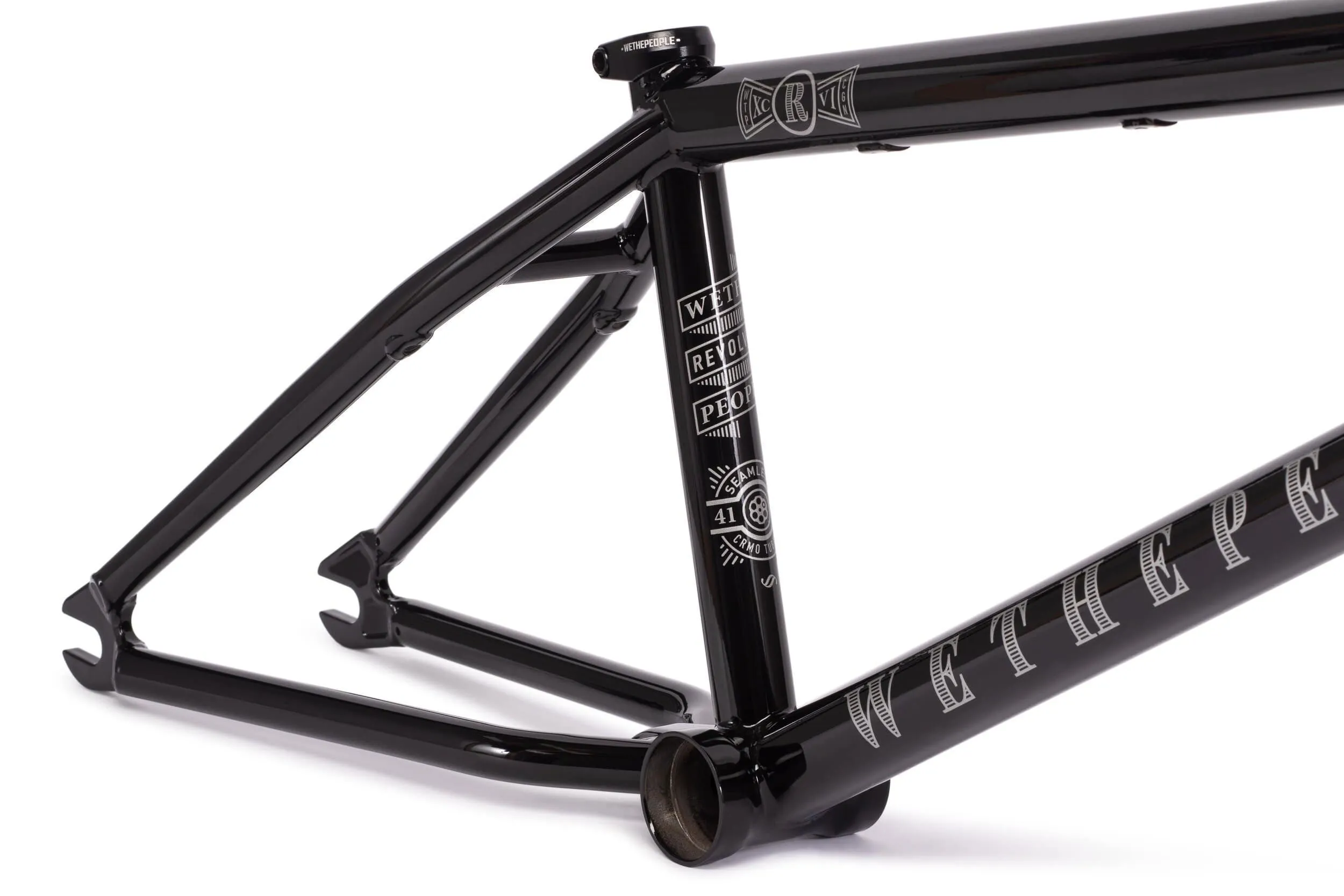

The Revolver frame, the perfect do-it-all and do it well model. A frame that was created with the sole intention of shredding on any terrain. We used larger diameter rear tubing and an invest cast wishbone, to not only give the revolver a strong and unique look but more importantly to strengthen and stiffen the whole frame up - giving it a stable yet responsive feel. Combined with our new 7.5mm thick invest cast dropouts with integrated chain tensioners - the revolver is a deadly weapon capable of just about anything.
Includes lifetime guarantee
SPECIAL FEATURES:
Perfect all-round geometry
Oversize seatstays and chainstays for increased stiffness
Wider rear triangle allows clearance for a 2.5" tire

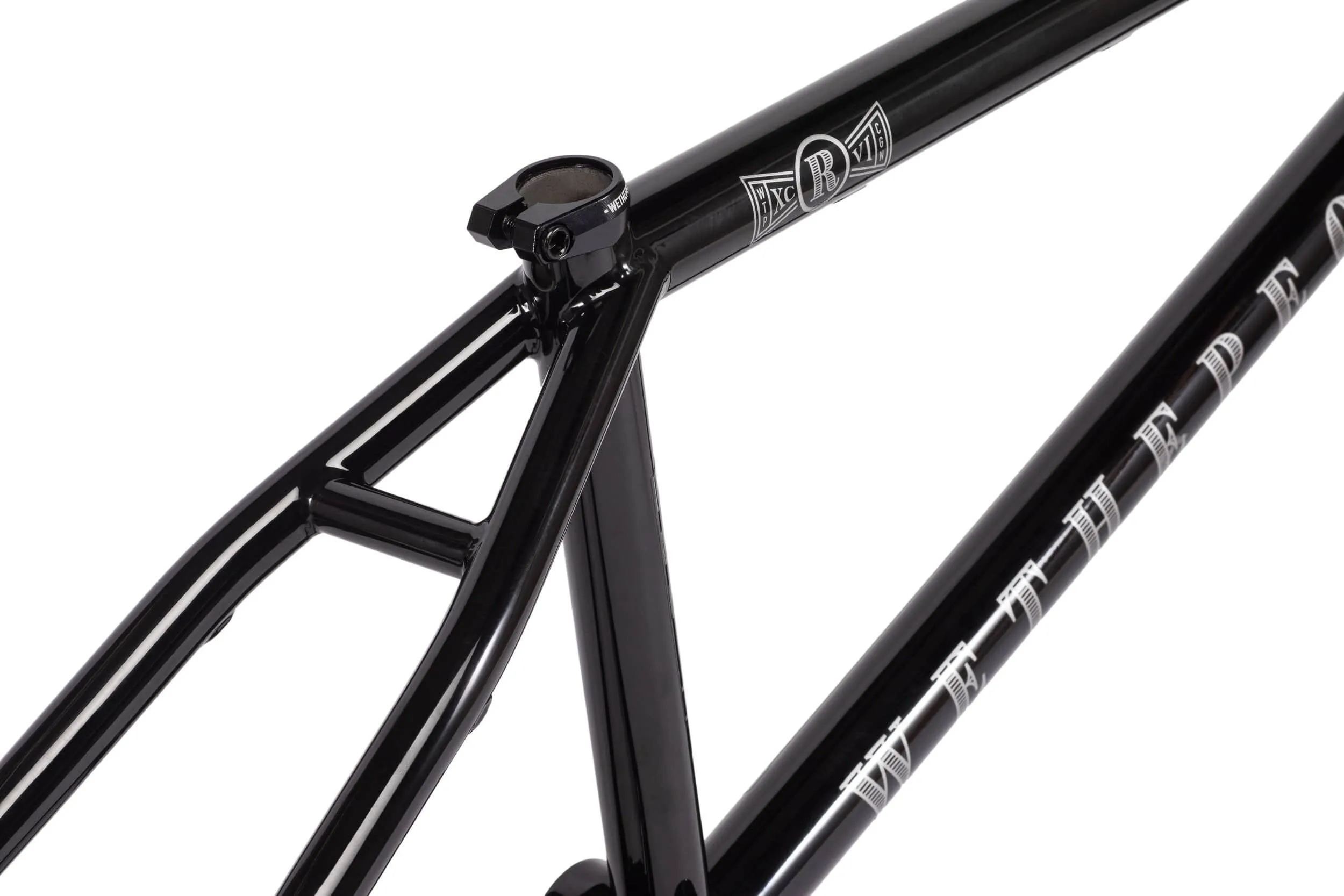

Invest cast wishbone
Frame comes drilled for Pivot-3 type removable brake mounts, but brake hardware is NOT included
Custom 127mm headtube with smoother shape and matching bottom bracket shell
Includes WTP Supreme alloy seatclamp
Top and down tube gussetts
SPECIFICATIONS
TUBING:
Butted, seamless 4130 chromoly tubing japanese
TOPTUBE:
20.75", 21 "or 21.25" TT
CHAINSTAY LENGTH:
13.25" slammed with 28-9 gearing, 13.5" centered
ANGLES:
HT: 74.85 °, ST: 71 °
BOTTOM BRACKET:

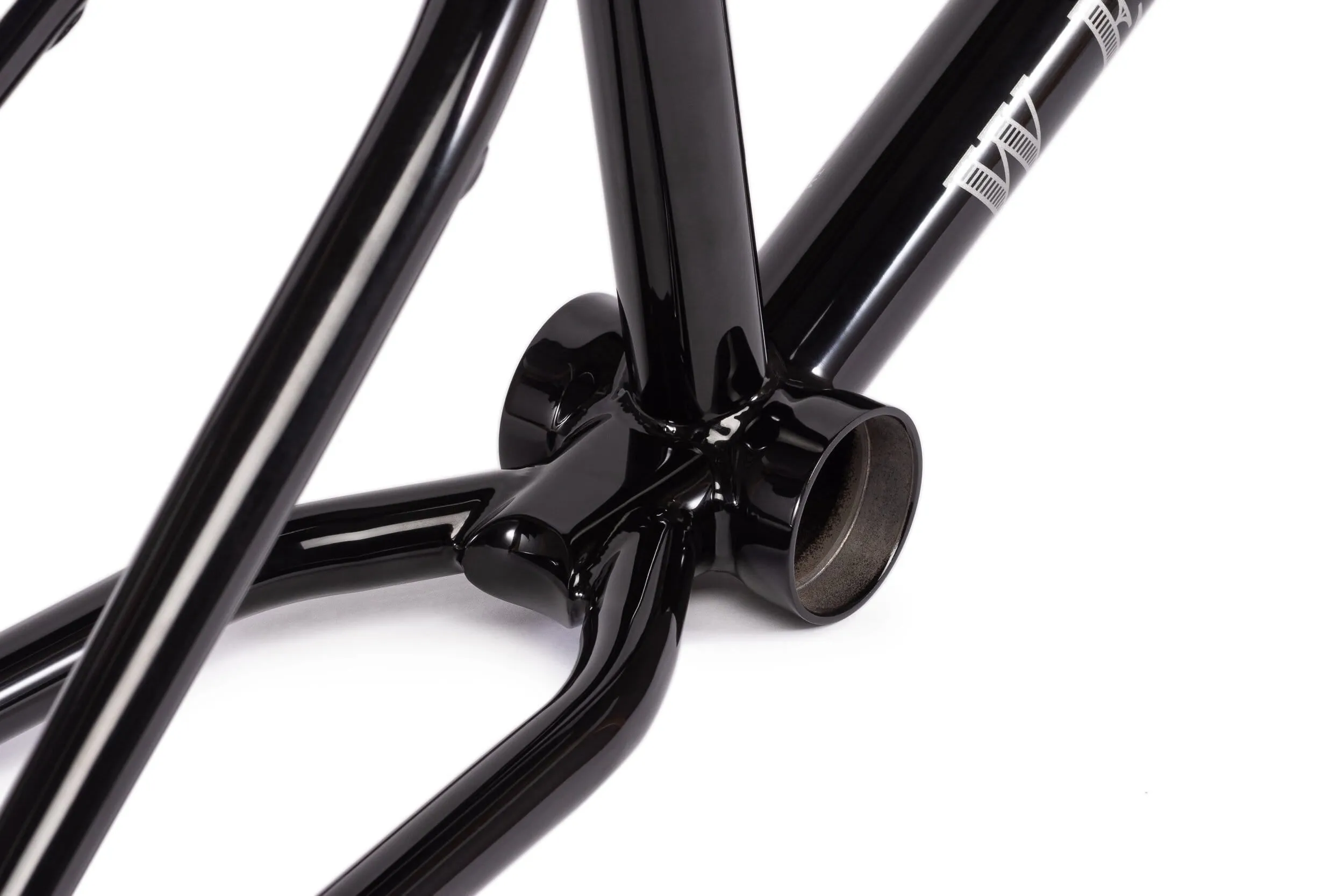

Mid-BB width: 74mm, height: 11.5 ", cnc machined and heat-treated
HEADTUBE:

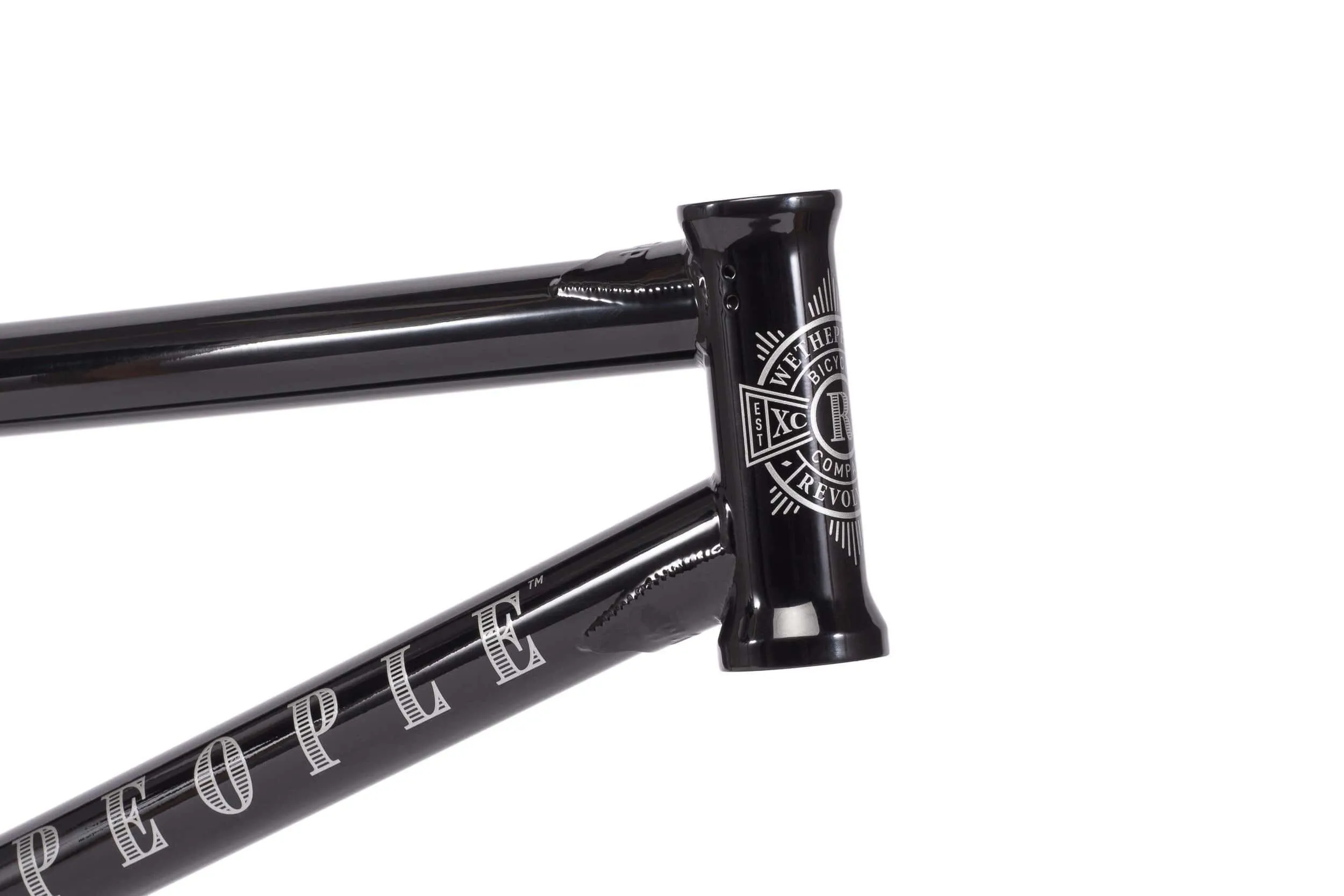

127mm tall, cnc machined and heat-treated, integ. h / set, drilled for gyro tabs
DROPOUTS:

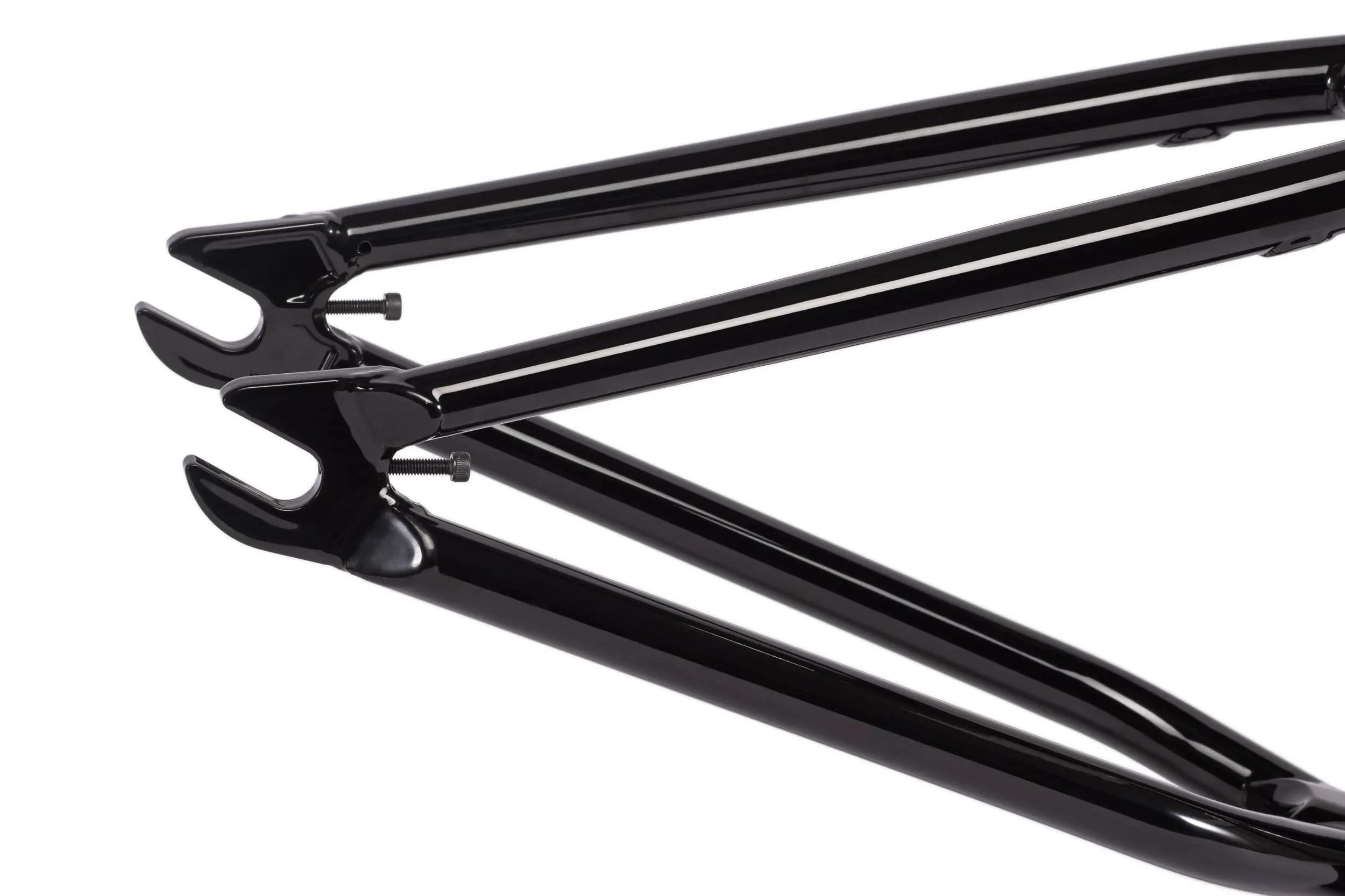

7.5mm invest cast crmo, heat-treated, integrated chain tensioners
COLORS:
glossy black ed, matt translucent maroon, turbo red
WEIGHT:
2.385kg - 5.25lbs (21")
A: Top Tube: 20.75"/21"/21.25"
B: Chain Stay: 13.25"-13.75"
C: Head Tube Angle: 74.85°
D: Seat Tube Angle: 71°
E: Bottom Bracket Height: 11.5”
F: Stand Over Height: 9.1”
